3/4 yard crane hopper. Customization available on request.
.png)
SD12BT 48.375L x 40.5W x 29.75H
Light Duty
Self Assembly Required
All Hardware Included
Powder coated Grey
.png)
SD12HE 2500lbs Capacity
SD34HE 2500lbs Capacity
SD100HE 2500lbs Capacity
SD150HE 4000lbs Capacity
SD200HE 4000lbs Capacity
Capacity (Cu. Yards): 4
Weight (with no extras): 1295 lbs
Height: 47-1/4
Overall Width: 86
Overall Length: 73-7/8
Fork Width: 40-1/4
Bottom Thickness: 3/16"
Side Thickness: 3/16"
Dumping Angle: 40°
Height: 27-1/2
Overall Width: 29-1/4
Overall Length: 41-3/4
Dumping Angle: 40°
Capacity (Cu. Yards): 5
Weight (with no extras): 1480 lbs
Height: 55-5/8
Overall Width: 90
Overall Length: 87-1/4
Fork Width: 47-3/8
Bottom Thickness: 3/16"
Side Thickness: 3/16"
Dumping Angle: 40°
Weight Capacity: 4000 lbs
Capacity (Cu. Yards): 3
Weight (with no extras): 1055 lbs
Height: 47-1/4
Overall Width: 76-1/2
Overall Length: 73-7/8
Fork Width: 40-1/4
Bottom Thickness: 3/16"
Side Thickness: 3/16"
Dumping Angle: 40°
Weight Capacity: 5000 lbs
Capacity (Cu. Yards): 2-1/2
Weight (with no extras): 930 lbs
Height: 47-1/4
Overall Width: 64-1/2
Overall Length: 73-7/8
Fork Width: 40-1/4
Bottom Thickness: 3/16"
Side Thickness: 3/16"
Dumping Angle: 40°
Weight Capacity: 5500 lbs
Capacity (Cu. Yards): 2
Weight (with no extras): 920 lbs
Height: 43-5/8
Overall Width: 64-1/2
Overall Length: 70-1/2
Fork Width: 36-1/4
Bottom Thickness: 3/16"
Side Thickness: 3/16"
Dumping Angle: 40°
Weight Capacity: 5500 lbs
Capacity (Cu. Yards): 1-1/2
Weight (with no extras): 715 lbs
Height: 43-5/8
Overall Width: 47-1/2
Overall Length: 70-1/2
Fork Width: 36-1/4
Bottom Thickness: 3/16"
Side Thickness: 3/16"
Dumping Angle: 40°
Weight Capacity: 5500 lbs
Capacity (Cu. Yards): 1
Weight (with no extras): 505 lbs
Height: 40-7/8
Overall Width: 40-1/2
Overall Length: 62-1/2
Fork Width: 36-7/8
Bottom Thickness: 3/16"
Side Thickness: 10 ga.
Dumping Angle: 40°
Weight Capacity: 5000 lbs
Capacity (Cu. Yards): 3/4
Weight (with no extras): 440 lbs
Height: 35-1/4
Overall Width: 40-1/2
Overall Length: 57-7/8
Fork Width: 31-1/4
Bottom Thickness: 3/16"
Side Thickness: 10 ga.
Dumping Angle: 40°
Weight Capacity: 4000 lbs
Capacity (Cu. Yards): 1/2
Weight (with no extras): 380 lbs
Height: 32-1/8
Overall Width: 40-1/2
Overall Length: 48-3/8
Fork Width: 29-1/8
Bottom Thickness: 3/16"
Side Thickness: 10 ga.
Dumping Angle: 40°
Weight Capacity: 2500 lbs
Capacity (Cu. Yards): 1/4
Weight (with no extras): 250 lbs
Height: 25-5/8
Overall Width: 27
Overall Length: 47-5/8
Fork Width: 22-3/4
Bottom Thickness: 3/16"
Side Thickness: 10 ga.
Dumping Angle: 40°
Weight Capacity: 2500 lbs
Length: 45-1/2"
Width: 45-1/2"
Height: 10-1/2"
Side Material: 10ga.

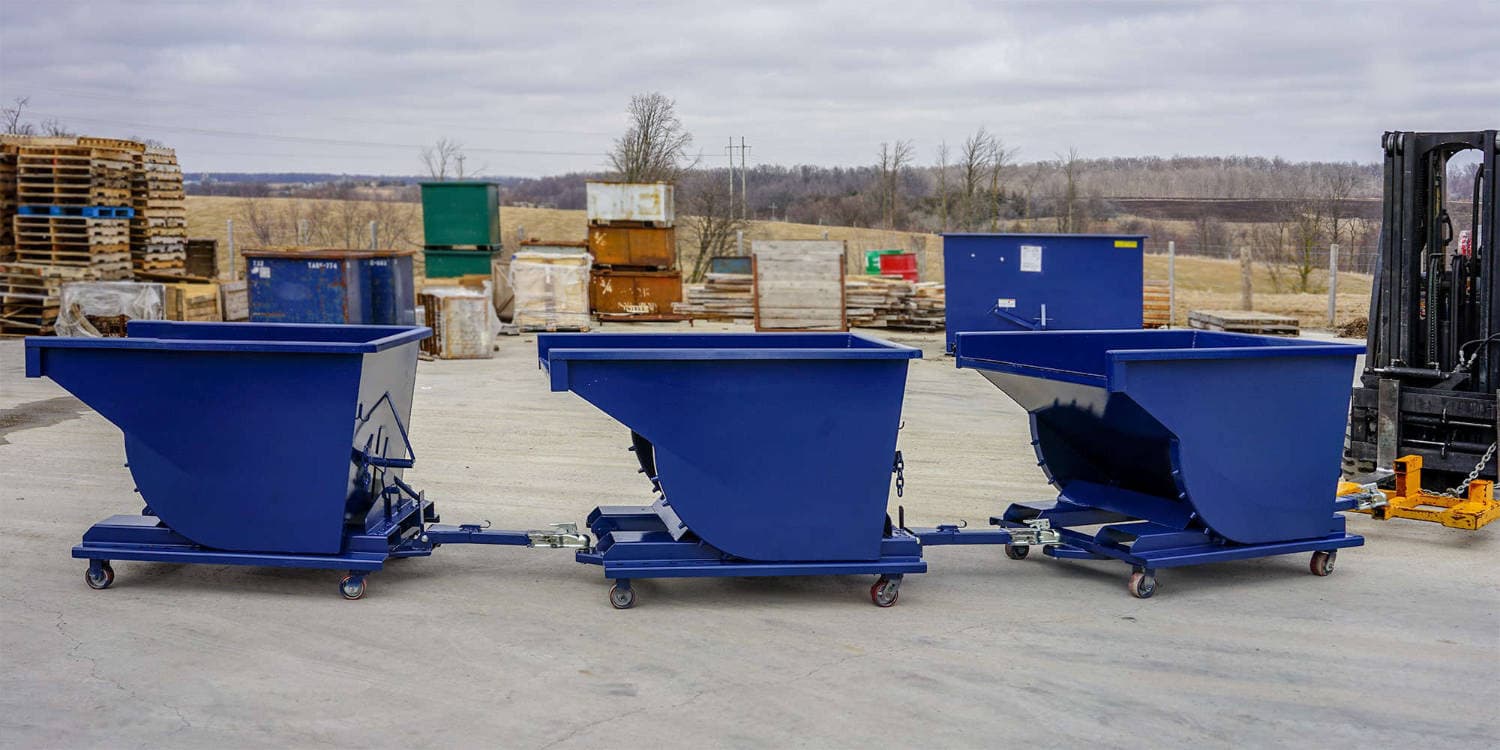

By re-engineering our popular Self Dump Hopper line-up, our Tugger Bin Train line-up adds a new level of efficiency to any workflow for anyone from manufacturers to big operations. Each dump hopper has been given a durable ball and hitch and four 360˚ zero-point turn wheels so that tuggers can string multiple bins into a train and easily maneuver them through tight workspaces. Reduce your amount of dumping trips by carrying more volume at once or use the train to make a string of sorted materials mobile.
